7KW 11KW Wall Mounted Ccs Charging Stations AC EV Fast Charger

Product Categories
HaiNan SynYune EV Technology Co.,Ltd
Contact Now

7KW 11KW Wall Mounted Ccs Charging Stations AC EV Fast Charger

  • 1
  • 2

Brand Name : SYEV

Model Number : EVP7

Certification : CCC

Place of Origin : Xiamen, China

MOQ : 1unit

Price : USD200~700/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000units/month

Delivery Time : 25days

Packaging Details : Carton Packed

Charger Type : AC Charger, Slow Charger

Input Voltage : 230V

Maxium Output Power : 7kW

Charging Mode : Mode 3

Input Current : 32A

Operating Temperature : -25~50C

Operating Humidity : 5~95%

Degree Protection : IP54

Dimension : 250*139*445mm

Contact Now

AC EV Charger 7KW Mode 3 Charging Mode 11kw Power Wall Mounted

Techanical Ratings
AC Input
Connection type U/V/W+N+PE
Input voltage 230Vac
Input frequency 50Hz±10%
Rated power 7kW
Max input current 32A
Power factor ≥0.98, Maximum value
Max. efficiency >94%
Charging Interface
Vairant-A Type 2 cable, 4M
Vairant-B Type 2 socket without shutter
Charging Mode Mode 3
HMI
Access Control RFID, APP, CARD
LED Operating status
Wireless network WIFI 2.4GHz with OCPP 1.6J
Wired network RJ45, RS485
Protocol for backend3 --
Ambient Conditions
Operating temp, range -10°C~+50°C
Operating humidity 5-95%
Operating altitude ≤2000m
Mechanical Data
Dimension (W*D*H) 250*139*445mm
Degree of protection IP54
Charging cable length optional
Noise level ≤75dB
Installation Wall Mounted
Standard and Compliance
Charging System IEC 61851-1, IEC 62196-2
IEC 61851-21-2, IEC 61800-2, IEC 61800-4
EMC IEC61000-6-1 IEC61000-6-3
Certification mark TUV CE

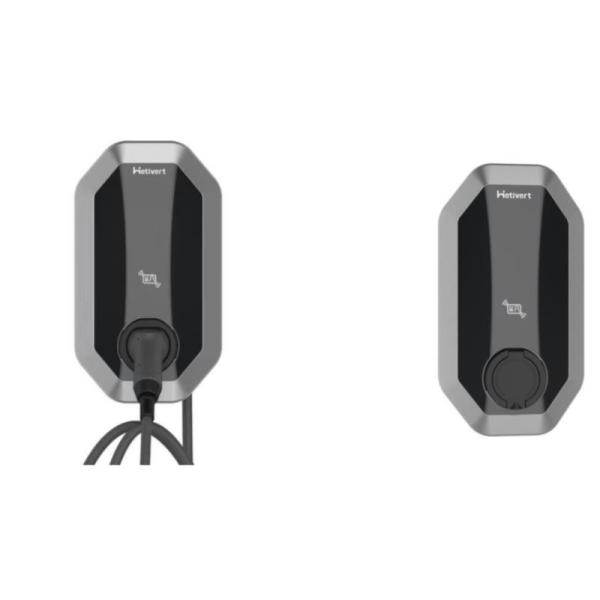

Products HD Picture

7KW 11KW Wall Mounted Ccs Charging Stations AC EV Fast Charger

7KW 11KW Wall Mounted Ccs Charging Stations AC EV Fast Charger

Product Features

7KW 11KW Wall Mounted Ccs Charging Stations AC EV Fast Charger

Product Features

7KW 11KW Wall Mounted Ccs Charging Stations AC EV Fast Charger

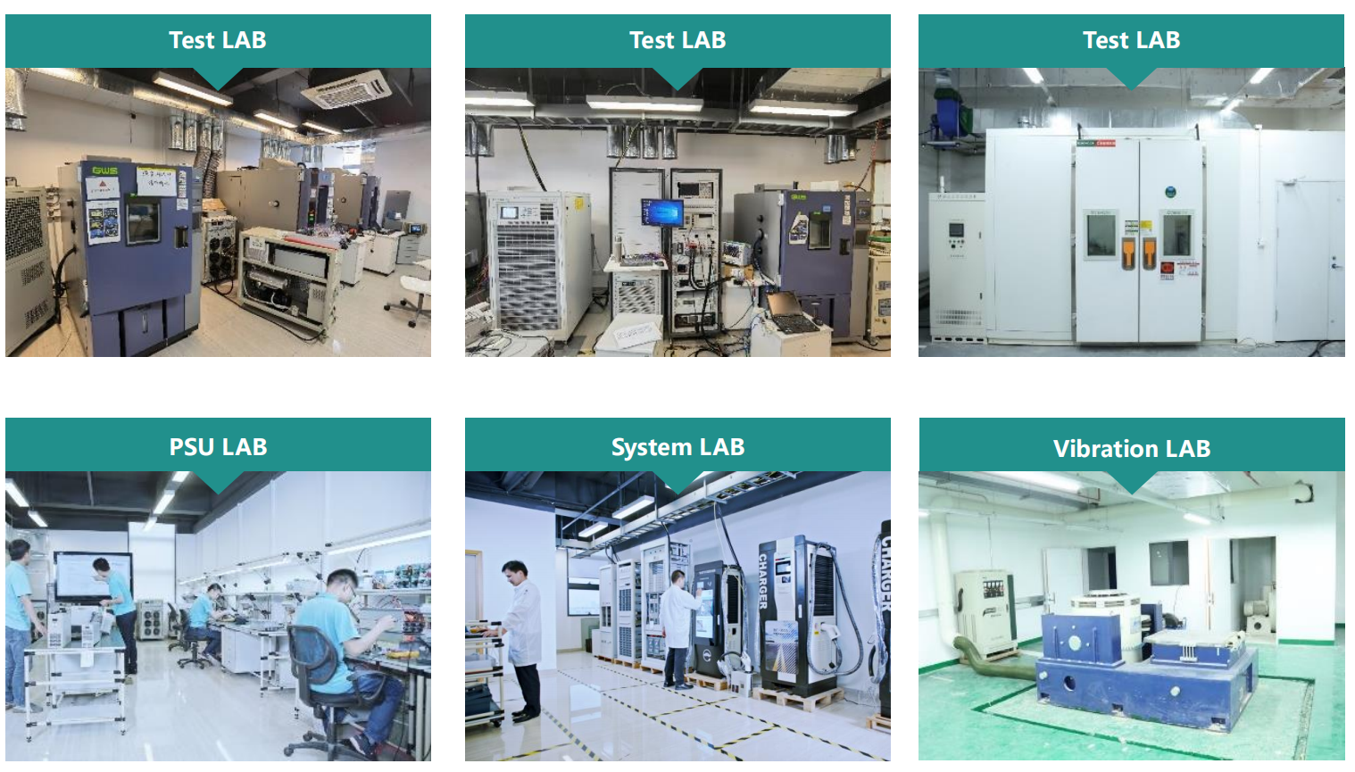

Factory Tourist

7KW 11KW Wall Mounted Ccs Charging Stations AC EV Fast Charger

7KW 11KW Wall Mounted Ccs Charging Stations AC EV Fast Charger
